As power systems continue to improve their efficiency and performance, so do the requirements for current sensing accuracy, and Matrixsens has launched the latest current sensing ICs from the GC182 series with a maximum range of 200A. The chip adopts a new generation of compound Hall integration technology, which has the characteristics of high precision, high linearity, low temperature drift, etc., and significantly improves the current detection accuracy in the whole temperature range.
Indicator Advantages:
0-200A AC & DC current detection
Bandwidth: 250kHz
Response time: 1.5μs
Linearity error: ±0.2%
Zero point temperature drift: ±5mV

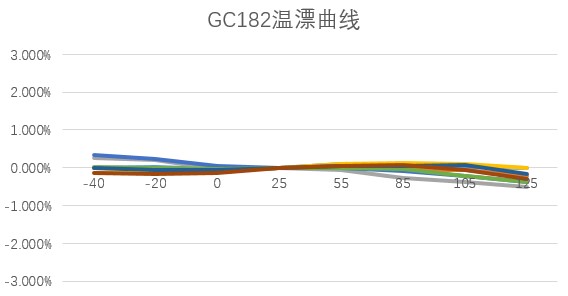

Sensitivity Drift: ±0.2% Typical
Quiescent working current: 7mA
Low primary-side on-resistance: 100μΩ
Isolation withstand voltage: 4800Vrms
The integrated magnetic ring effectively resists stray magnetic field interference
A variety of capacities and package forms are available to meet the different needs of customers
![V]D$W[`_]`L1J~ZRGRX$2OB.png](/upload/image/20240429/17143791128248335.png "V]D$W[`_]`L1J~ZRGRX$2OB.png")
Applications:
New energy power generation
Industrial inverter
Commercial air conditioning
Charging piles
Welding machine
UPS
